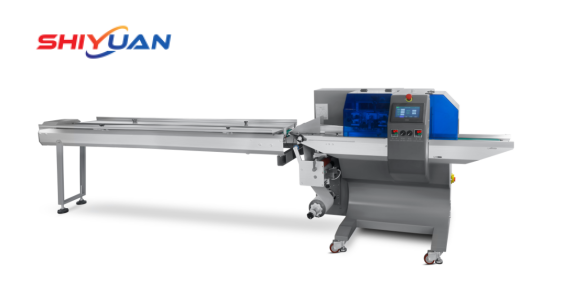

Automatic down film three servo pillow packaging machine

Name: Automatic down film three servo pillow packaging machine
Brand: Shiyuan
Price: 1 USD

Model Number : SY-350XDAN

Bag width : 50～160mm

MOQ : Negotiable

Delivery Time : 15 - 25 / day

Packing speed : 10～25 Meter / min

Certification : CE

Bag length : Any long size by sensor control

Packaging Details : L3700 * W670 * H1320

Payment Terms : D/A,D/P,T/T,Western Union

Machine size : (L)3592×(W)810×(H)1100mm

Brand Name : Shiyuan

Film width : Max.340mm

Place of Origin : Foshan

Product height : Max.45～65mm

Price : Negotiable

Power Specifications : 220V,50/60HZ,2.8KW

Supply Ability : 100 Set / Month

Approximately Weight : 450Kg

Contact Now

Automatic down film three servo pillow packaging machine

Main Performance and Structural Features

1. Three servo motors, controlled by PLC. The bag length is cut immediately upon setting, no need for adjustment of idle travel. It is completed in one step, saving time and film.

2. Human-machine interface. Parameter setting is convenient and fast. It can automatically package when there is a product and automatically pause and wait when there is no product.

3. Self-diagnosis function for faults, fault display is clear at a glance.

4. High-sensitivity photoelectric eye color marking tracking, digital input for sealing and cutting position, making the sealing and cutting position more accurate.

5. Temperature independent PID control, better suitable for various packaging materials.

6. Positioning stop function, no knife sticking, no waste of film.

7. Simple transmission system, more reliable operation, easier maintenance and servicing.

8. All control is realized by software, facilitating function adjustment and technical upgrade, never lagging behind.

Machine Specification

Model	SY-350XDAN
Film Width	Max.340mm
Bag length	Any long size by sensor control
Bag width	50～160mm
Product Height	Max.45～65mm
Film roll diameter	Max.320mm
Packing speed	10～25 Meter / min
Power Specifications	220V,50/60HZ,2.8KW
Machine size	(L)3592×(W)810×(H)1100mm
Approximately Weight	450Kg
